Home/Products

Two ranges: base build and end-of-line

Base build load banks prove the heat load and cooling plant. End-of-line AI liquid GPU emulators replicate each rack before the GPUs are installed. Commissioning equipment supports both, and up to 250 units run from one controller.

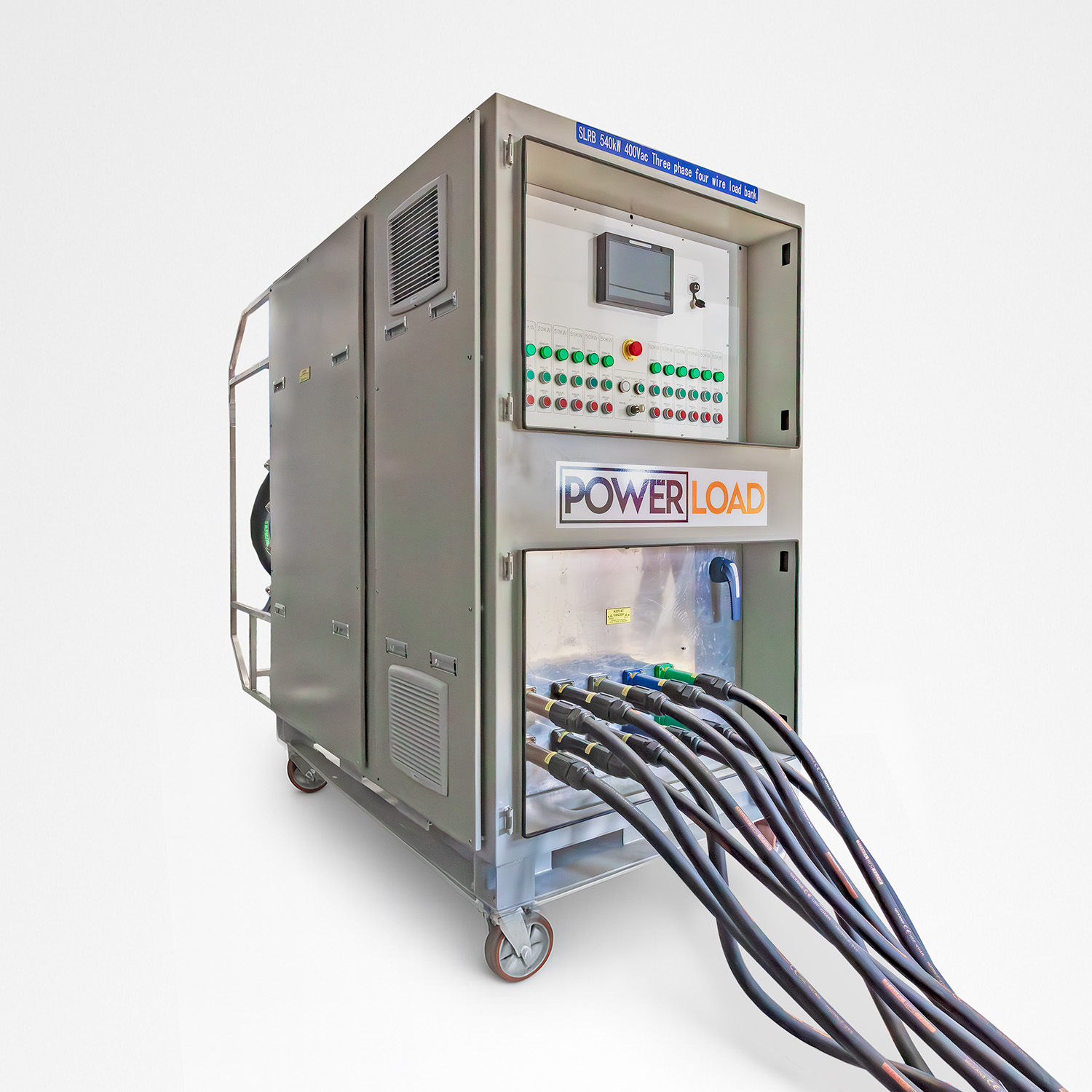

PowerLoad 500kW liquid-cooled load bank
700kWHighest single-unit capacity
240kWAI liquid GPU emulator, per unit
250Units, one controller
1kWSolid-state switching resolution, LB700
The range

The full range, by range

Base build testing proves the heat load and cooling plant while the hall is built. End-of-line testing replicates the IT electrical and heat load at each rack. Commissioning equipment supports both.

Base build testing

Four units See the liquid-cooled load banks

A dependable, controllable heat load for chillers, CDUs and risers, where the specification requires static load testing.

Liquid-cooled

LB500, LB600, LB700

Air-cooled

ACLB 200

End-of-line testing

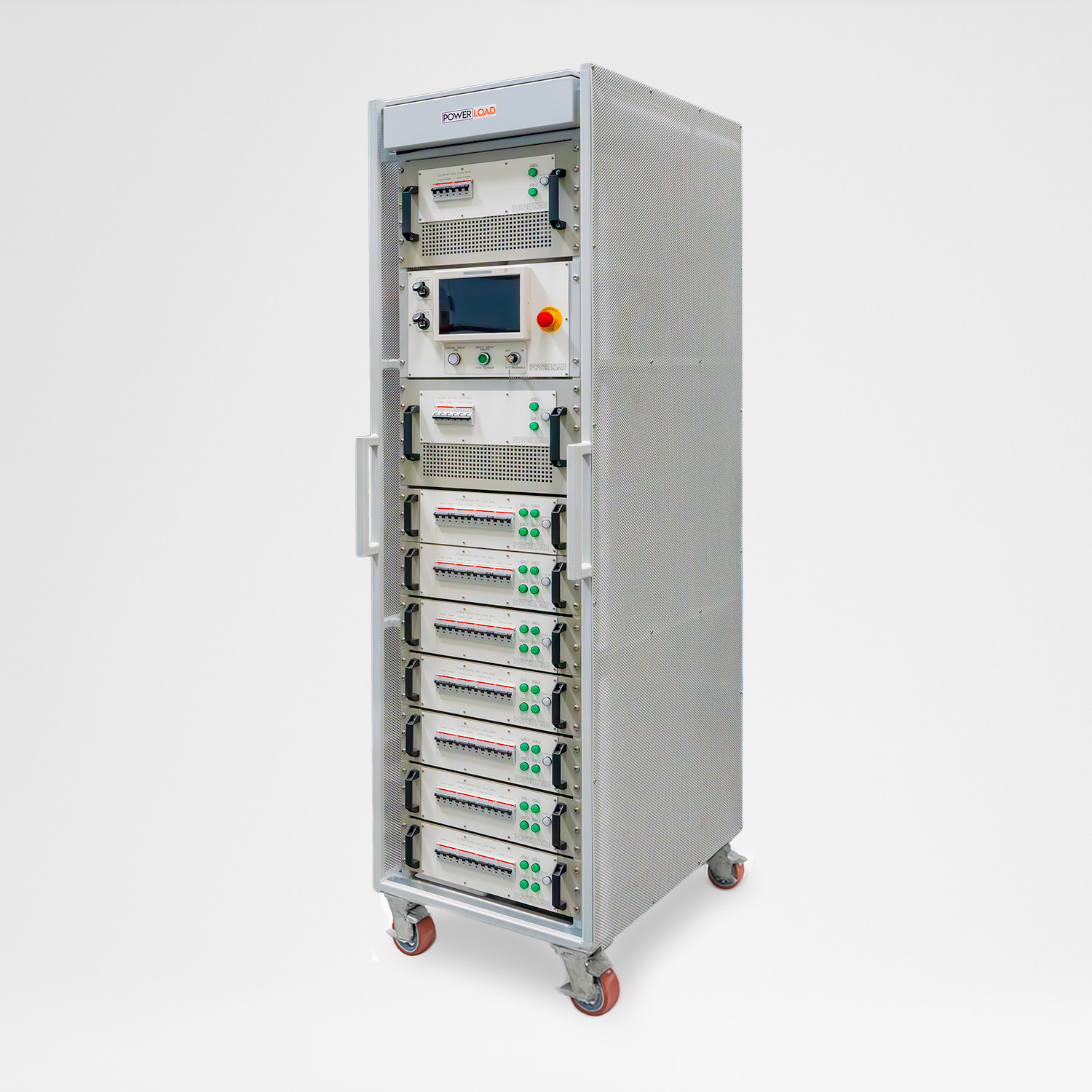

Three units See the AI liquid GPU emulators

True rack-level heat and electrical replication, showing how the GPUs will behave before they are installed.

Commissioning equipment

Two units See the equipment

Flushing, filling and distributing coolant before testing starts.

How it fits together

The order the equipment is used in

Flush and fill Refill cart Balance Manifold trolley Base build testing Liquid-cooled banks End-of-line testing AI liquid GPU emulator Before the GPUs arrive

Every piece shares the same connection standards and controller, so test data carries from one stage to the next.

Across the range

Common to every unit

250 units, one controller

Drive and monitor the whole fleet from a single point.

Shared connections

FD83, Tri-clamp and UQD standards across the range.

Solid-state switching

An optional extra on the base build units, standard on the GPU emulators. It steps the load far faster than contactor-based banks.

Real-time validation

Test data is validated as it is captured.

Exportable reporting

Test results export for the commissioning record.

UK engineered

Designed and made in the UK, CE and UL certified.

PowerLoad reporting output: coolant flow and temperature logged across four meters
Advanced reporting

Every unit reports the same way

Configurable load profiles replicate GPU and CPU power draw, so electrical distribution, coolant loops, CDUs and heat exchangers are tested against the load they will carry. Every unit writes to the same record.

  • Load profilesFive standard AI GPU and CPU profiles, plus custom
  • CapturedLoad steps, temperatures, pressure drop, flow rates
  • OutputScreenshots stored for traceability, data exported to CSV
Watch

The kit, explained

What a 500kW liquid load proves
Replicating real GPU behaviour

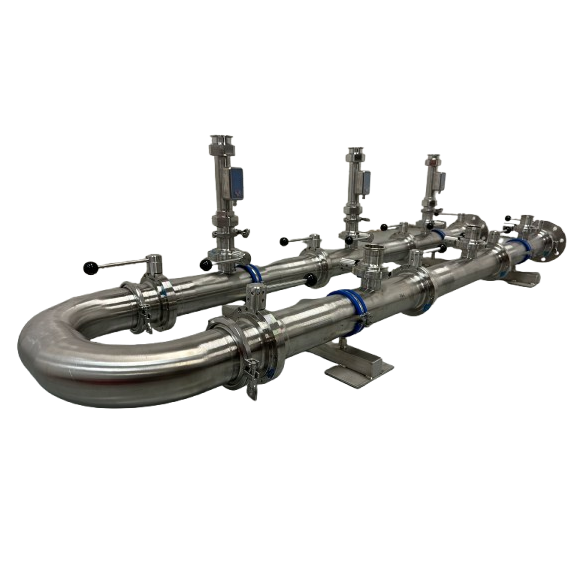

Why the bespoke manifold matters
Ramp and drop in a GPU load
10 per cent to 100 per cent on site
FAQ

The range, answered

Nine units in three groups. Base build testing: the 500kW LB500, 600kW LB600 and 700kW LB700 liquid-cooled load banks, and the 200kW ACLB 200 air-cooled load bank. End-of-line testing: the 160kW LCLB 160 and 240kW LCLB 240 AI liquid GPU emulators, and the 60kW ACLB 60 rack-format air heat emulator. Commissioning equipment: the manifold trolley and the 250 litre flushing and refill cart. Up to 250 units network on a single controller.

Base build testing uses the LB500, LB600, LB700 and ACLB 200 to prove the cooling plant, CDU and risers at capacity. End-of-line testing uses the AI liquid GPU emulators to replicate the heat and electrical load of the racks, including transient electrical spikes, so you see how the system responds before the GPUs are installed. The commissioning equipment flushes, fills and distributes coolant first.

Yes. The load banks, GPU emulators and commissioning equipment are all available to hire. Speak to the team about availability for your project.

Downloads

Every datasheet, in one place

Specifications across the whole range. Published documents download directly; anything not published yet is one message away.

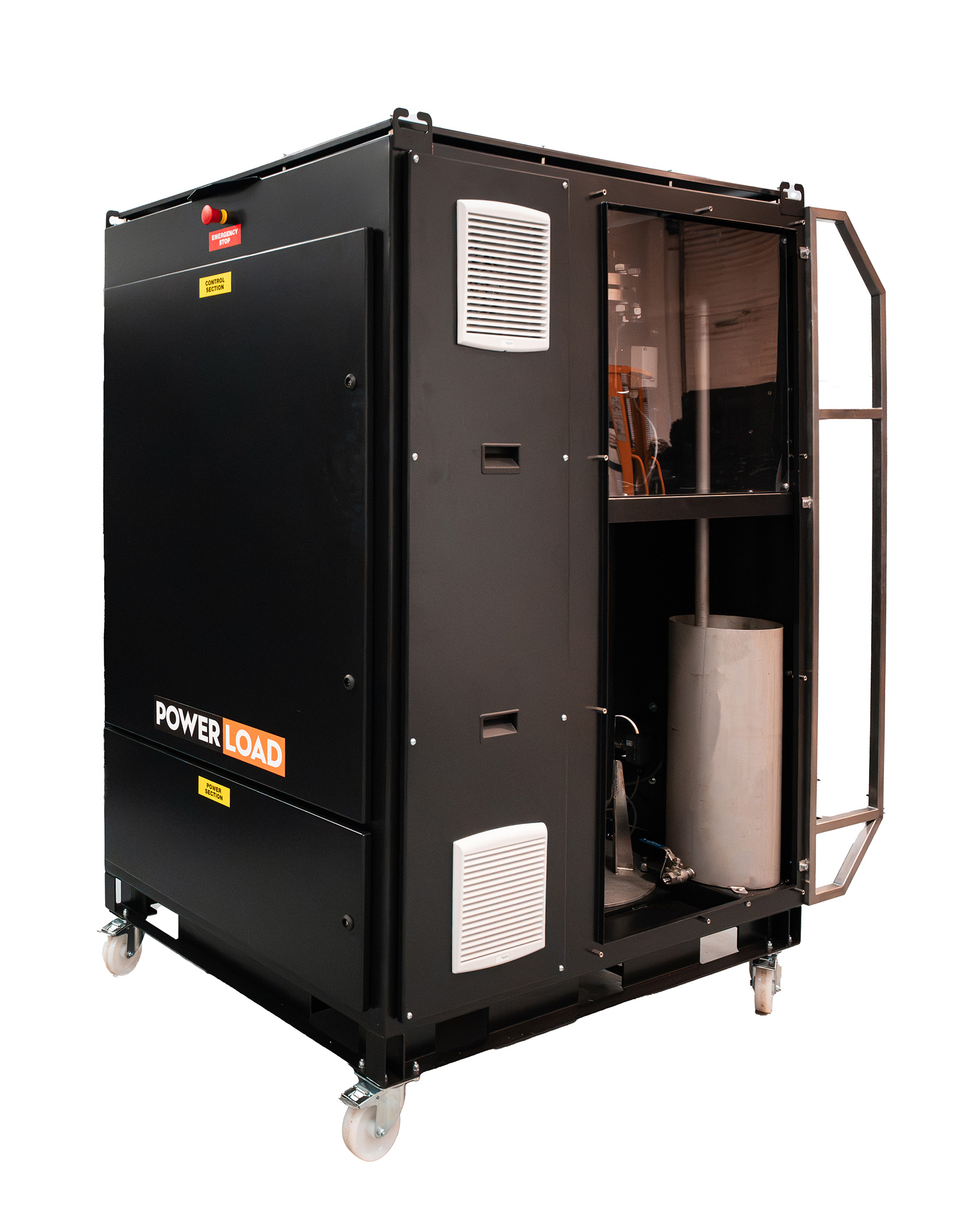

LB500

500kW liquid-cooled load bank datasheet

500kW per unit, rejecting heat straight into the coolant loop. Full specification, flow rates and connection detail.

PDF · 2 pages · 1.5 MBDownload
LB600

600kW liquid-cooled load bank datasheet

The 600kW liquid-cooled load bank. Full specification confirmed per project.

PDF · 2 pages · 1.5 MBDownload
LB700

700kW liquid-cooled load bank datasheet

The largest single unit in the range, on 5 inch flow and return with optional 1kW solid-state switching.

PDF · 2 pages · 1.5 MBDownload
GPU Emulator 160

LCLB 160 datasheet

Rack-level GPU simulator load bank. Electrical and hydraulic specification, control detail, dimensions and connections.

PDF · 2 pages · 1.2 MBDownload
GPU Emulator 240

LCLB 240 datasheet

240kW at rack level, with solid-state switching for fast, repeatable load profiling against the highest-density AI racks.

PDF · 2 pages · 1.2 MBDownload

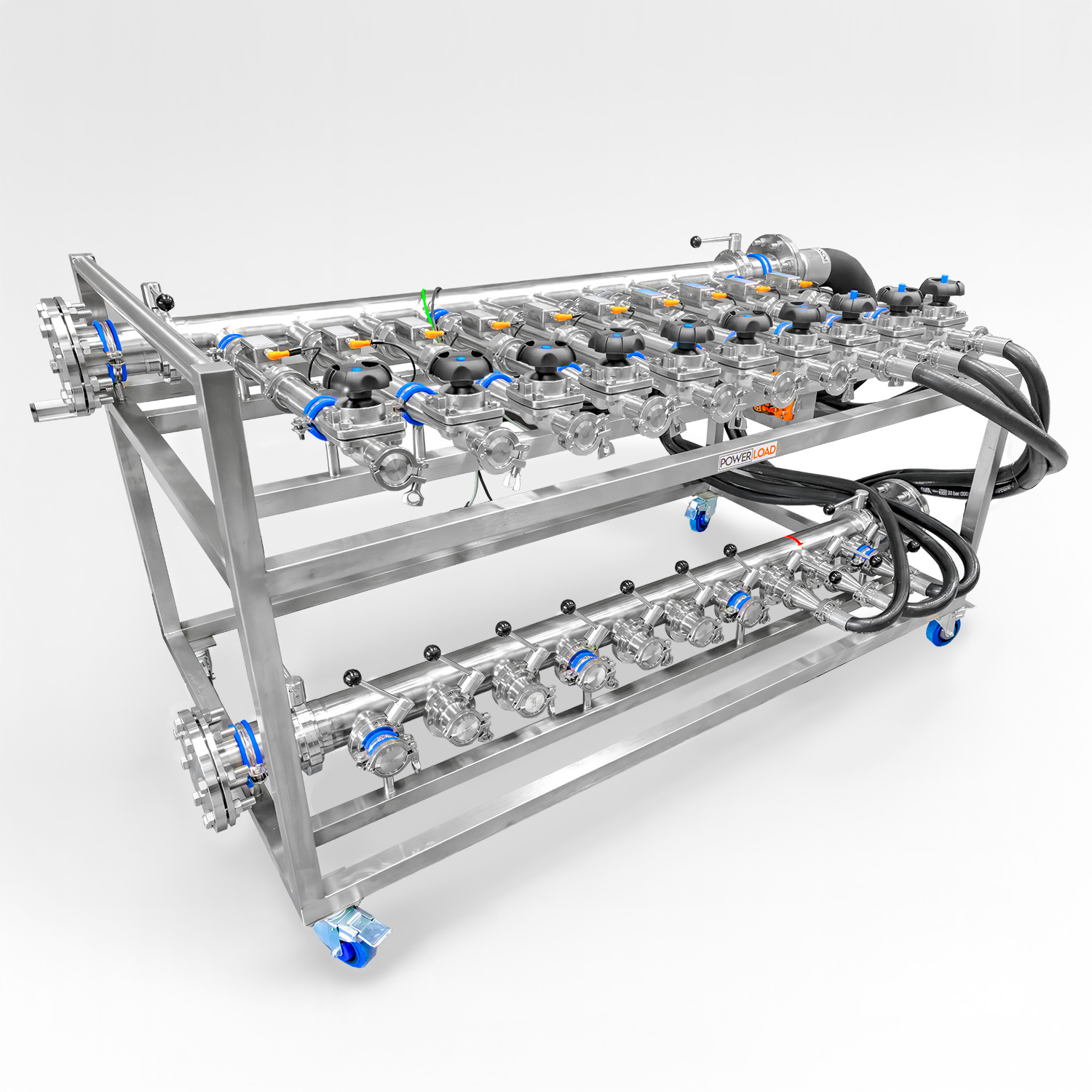

Manifold Trolley

Commissioning manifold trolley datasheet

Distribution and regulation across the loop, with circuit configuration and flow capacity.

PDF · 2 pages · 1.4 MBDownload

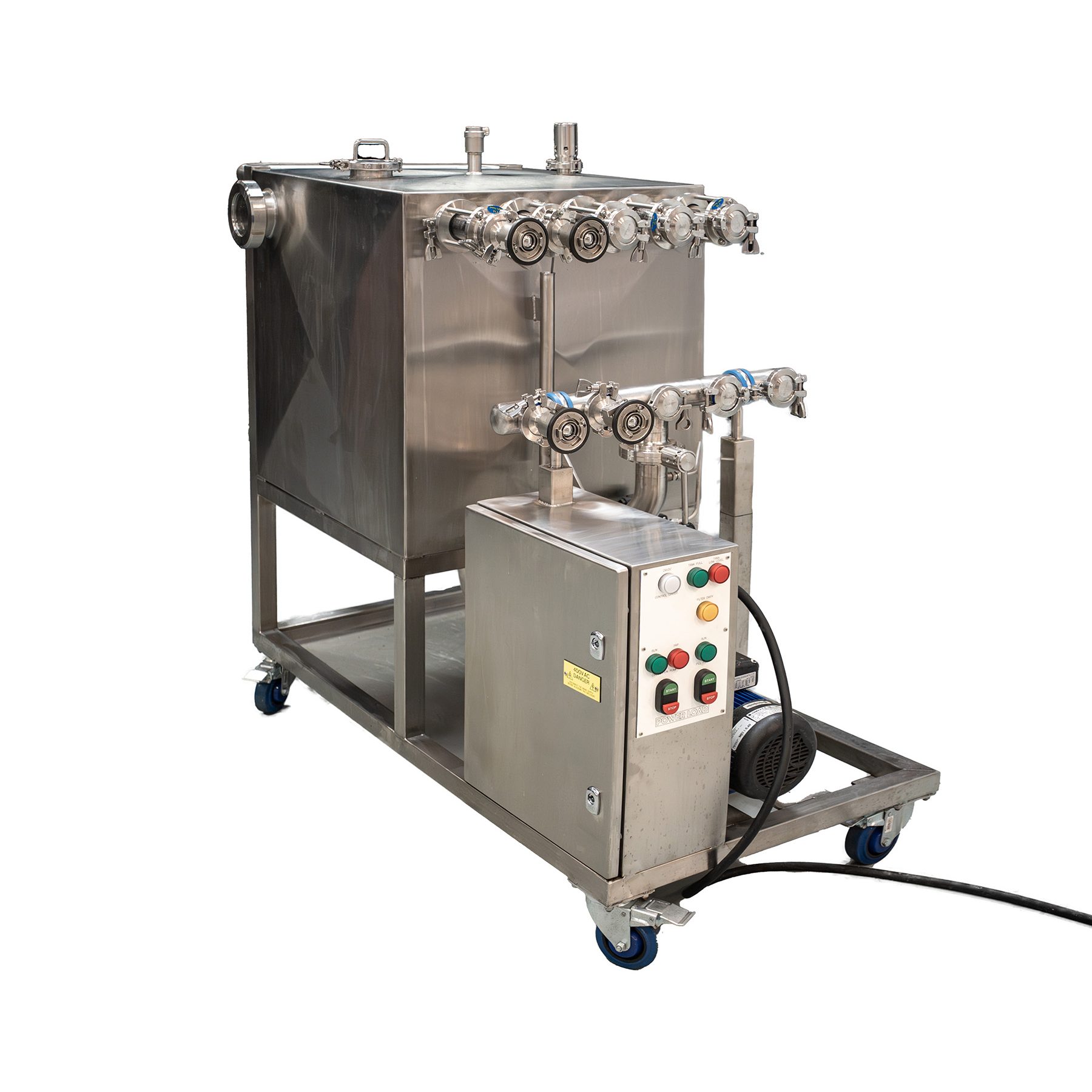

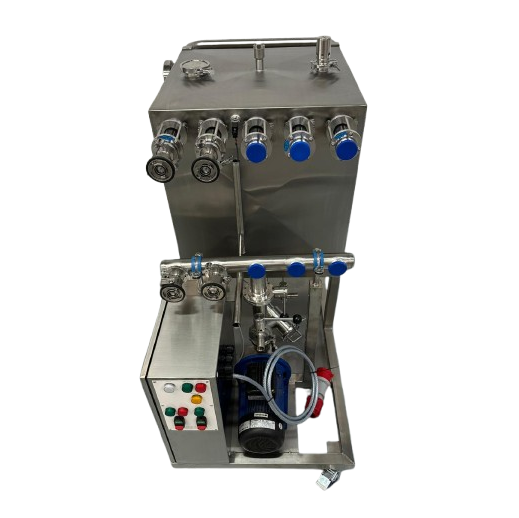

Flushing & Refill Cart

Flushing and refill cart datasheet

Cleaning, filling and proving the loop before the hardware goes in. Filtration, pump and capacity detail.

PDF · 2 pages · 1.6 MBDownload

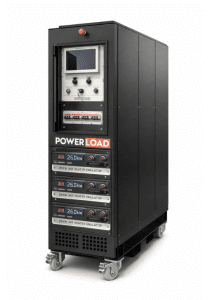

Air Emulator 60

ACLB 60 air heat load emulator datasheet

Low delta T air heat emulator (3 x 20kW) in rack format, run alongside the liquid emulators to replicate the heat the liquid loop does not carry.

PDF · 2 pages · 1.0 MBDownload
200kW Air Cooled

ADC 400V-200kW portable load bank datasheet

Portable resistive load bank for 400V three-phase power systems, with 1kW load steps and exportable test records.

PDF · 2 pages · 1.4 MBDownload

All of them also live on the downloads page.

Not sure which unit your project needs?

Give us your design and the programme. We will recommend the load banks, emulators and commissioning equipment for the project.
